Модель: HWX10000YD
марка: ЗАКАЗ OEM ПРИЕМЛЕМ
Источник питания: Гидравлический
применение: Квадроцикл / UTV
вольтаж: 24В, 12 В
Подробности Упаковки: ЭКСПОРТНАЯ КОРОБКА
транспорт: Ocean,Air
Место происхождения: КИТАЙ
Порт: NINGBO,SHANGHAI
Вид оплаты: L/C,T/T,D/P
Инкотермс: FOB,CFR,CIF

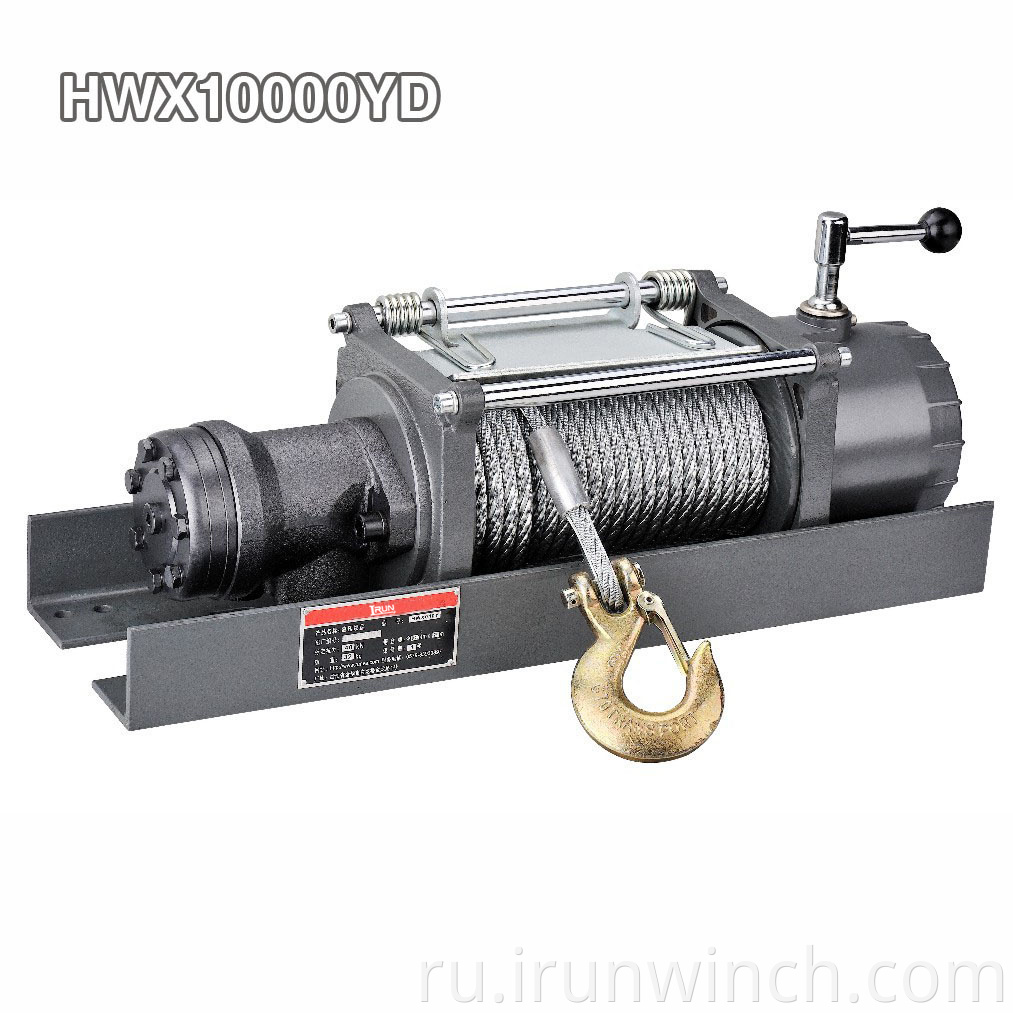

Гидравлическая автомобильная лебедка для прицепа на 10000 фунтов Артикул HWX10000YD Грузоподъемность до 10000 фунтов
с функциями:
HWX10000YD
| SPECIFICATION | |
| Rated line pull | 10000lbs(4536kgs) |
| Motor: permanent magnet | 50ml/r |
| Oil Flow | 15~40L/min |
| Pressure | 12.5Mpa |
| Gear reduction ratio | 28:1 |
| Cable (Dia.× L) | Ø3/8 “×85 ‘ (Ø9.2mm×26m) |
| Drum size (Dia.× L) | Ø2.6″×8. 5″ (Ø66mm×217mm) |

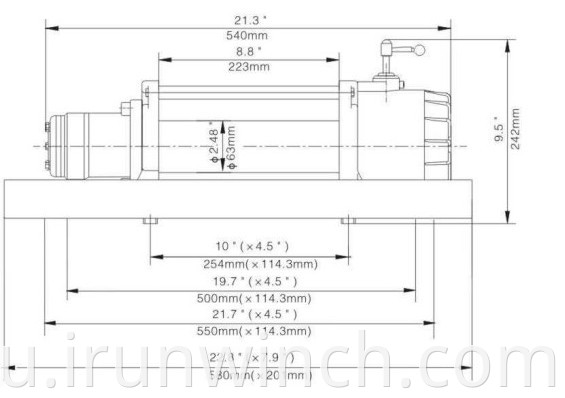

| Mounting bolt pattern | 21.7″×19.7 ” ×4.5 ” (550mm×500mm×114.3mm) 4-M12 |
| Line pull lbs (kgs) | Pressure Mpa(Psi) | Flow G/min (L/min) | Line speed ft/min(m/min) |
| 0 | 2.0(290.1) | 4.0(15) | 7.2(2.2) |
| 4000(1814) | 3.9(565.6) | 6.6(25) | 12.5(3.8) |
| 6000(2722) | 7.5(1087.7) | 9.2(35) | 17.7(5.4) |
| 8000(3629) | 10.5(1522.8) | 10.6(40) | 20.0(6.1) |
| 10000(4536) | 12.5(1812.9) | / | / |
| Layer of cable |
Rated line pull
lbs(kgs) |
Total rope on drum
ft (m) |
| 1 | 10000(4536) | 17.4 (5.3) |
| 2 | 7969(3615) | 39.4 (12.0) |
| 3 | 6624(3005) | 65.0 (19.8) |
| 4 | 5667(2571) | 85.3(26.0) |
| ITEM | HWX10000YD | ||
| Overall dimensions | 22.8″ (L)×7.9″ (W)×9.5″ (H) | ||
| (L×W×H) | 580(L) mm×201 (W) mm×242(H) mm | ||
| Net weight (Ibs) | 96.3 | ||
| (kgs) | 43.7 |
Группа Продуктов : Промышленные лебедки > Промышленная гидравлическая лебедка
